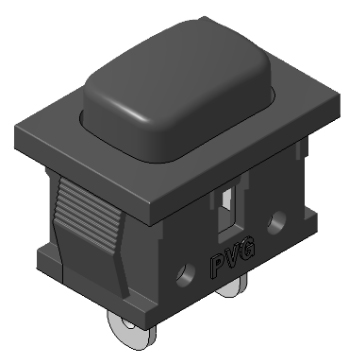

Rectangular Push On Switches

• Type : Push On Switch,SPDT
• Panel Thickness : Refer Panel Cut out table
• V/A Rating : 3A 125V AC, 1,5A 250V AC
• Contact Resistance (Initial) 50 mΩ. Max
• Insulation Resistance : 100 M Ω Min. at 500VDC
• Mounting : Panel, Snap-in
• Terminals : Soldering-Fast on-4.80X0.80
• Electrical Life cycle : 10000 Cycles
• Operating force : 1000 gm
• Mechanical Life Cycle : 50000 Cycle
• Switch Action : Momentary
• Working Temp : -20^oC To + 85^oC
• Overall size : 26 X 21 x 15 mm
• Cut Out Size : 19.4 X 13 mm

• Ease of use
• Durability
• Versatility
• Safety
• Voltage resistance
• Temp resistance
