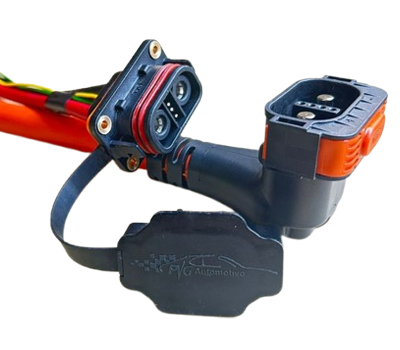

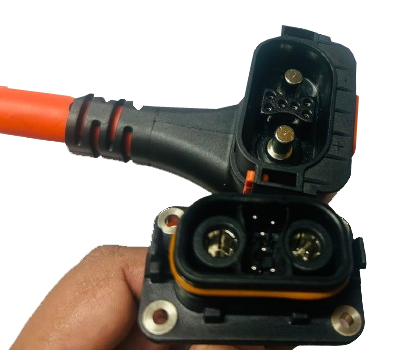

80-100 Amp Charging Discharging Connectors

• Models: Connector 2+4 and 2+6

• Pull-out Force: <110N
• Mating Cycle: 11,000 cycles

• Rating Voltage: Max 120 VDC
• Operating Voltage: Max 120 VDC
• Rating Current: 2(80A/100A) + 4(5A) and 2(80A/100A) + 6(5A)
• Discharging Peak Current: 110A/130A for up to 30 seconds
• Withstand Voltage: Max 500 VDC for 1 minute
• Insulation Resistance: Min 100MΩ at DC 500V
• Contact Resistance: <1.16Ω/km

• Operating Temperature: -40^oC to 105^oC
• IP Rating: IP67 (mated without cap)
• Flammability Rating: UL94-V0

• Terminal holding and engagement technology
• High conductivity
• Audible click when lock engaged
• C-Lock technology for locking and unlocking mechanism
• Improved ergonomics technology
• High mating and un-mating life cycle
• Tolerance to mechanical misalignment
• IP67 (Dust and Water Proof)
