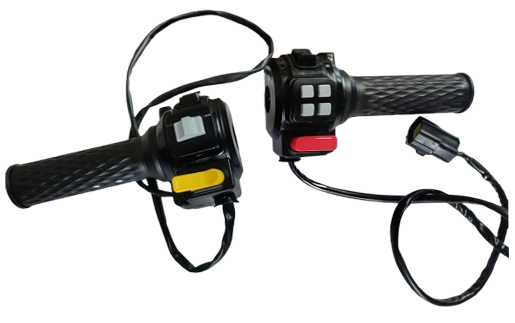

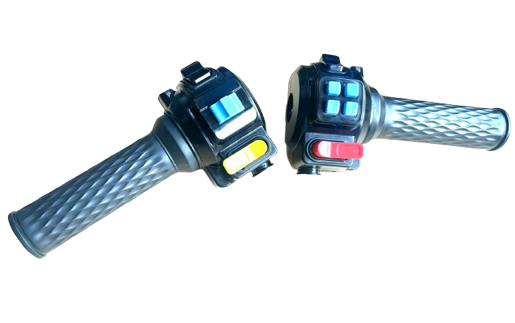

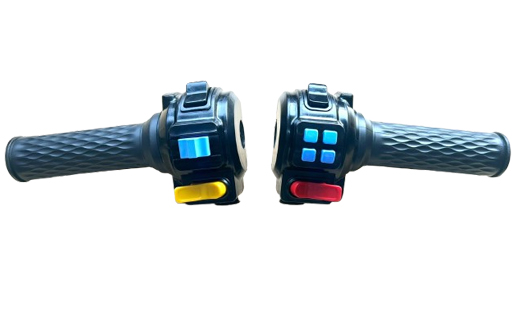

Bike Throttles

PVG's Bike Throttle, designed for battery-operated bicycles, 2-wheelers, and 3-wheelers with 24V, 36V, 48V, 60V, and 72V DC systems. Our latest throttle comes with four different variants, with switch customization available based on requirements.

• DC Input Voltage: 4.5-6 VDC (Nominal: 5VDC)
• DC Output Voltage: 0.8V to 4.25V
• Operating Temperature: -40^oC to 85^oC
• Throttle Rotation Angle: 0^o to 67^o
• Weight (With Switch): Approx. 240g
• Material: ABS Black, PVC Black
• Overall Dimensions: 180 x 80 x 95 mm
• Maximum Operating Force: 25-30 N

• Hall Effect Magnetic Sensor – Ensures a long operational life with frictionless performance.
• Advanced Vibration Resistance Design – PCB-mounted IC enhances durability on rough terrains.
• Programmable IC – Maintains consistent voltage output at a defined throttle rotation angle.
• Ergonomic & Fatigue-Free Operation – Smooth and effortless use over long durations.
• IP65 Protection – Water-resistant electronic circuit for reliable performance in all conditions.
• Customization Available – Pigtail length, connectors, and switches can be tailored as per need.
• Standard Handlebar Mounting – Fits handle diameters of 22mm to 22.4mm.
