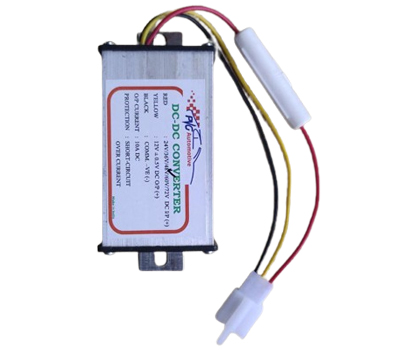

DC-DC Converter 48V/72V to 8A

Two-Wheelers, Three-Wheelers, Electric Vehicles

• Input Voltage Range: 30–85 VDC
• Nominal Voltage: 48/60/72 VDC
• Output Voltage: 12.0VDC ±0.5VDC
• Output Current: 8A constant, 10A peak
• Line & Load Regulation: ±2%
• Operating Temperature Range: 0^oC to +75^oC
• Enclosure: Aluminum, IP67 waterproof
• Dimensions: 125mm x 40mm x 45mm
• Mounting: Flange M6 Screw and Nut Bolt
• Fuse base protection
• Casing: Extruded (Casting)

• Enhanced Durability
• High Efficiency
• Safe for use
• Compact & Lightweight
• Wide Input Voltage Range
• High Current Capacity
• Efficient Heat Management with Aluminum housing
