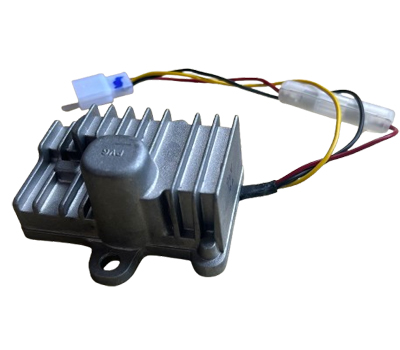

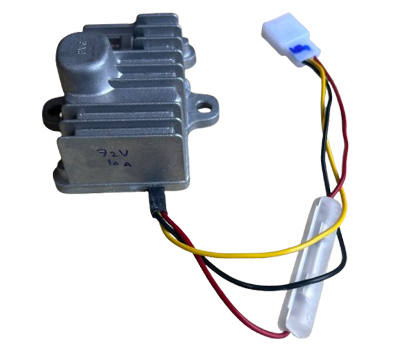

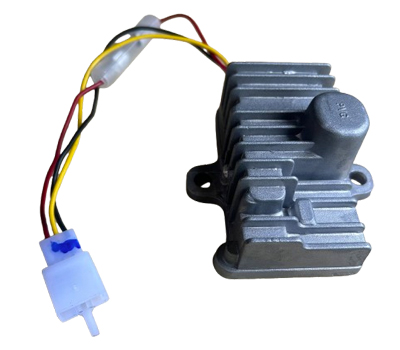

DC-DC Converter 48V/72V to 12V -10 A

Two-Wheelers, Three-Wheelers, Electric Vehicles

• Input Voltage Range: 30–85 VDC
• Nominal Voltage: 60/72 VDC
• Output Voltage: 12VDC To 14 VDC ±0.5VDC
• Output Current: 8A constant, 10A peak
• Line & Load Regulation: ±2%
• Operating Temperature Range: -20^oC to +85^oC
• Enclosure: Aluminum, IP67 waterproof
• Dimensions: 95mm x 85mm x 45mm
• Mounting: Flange M6 Screw and Nut Bolt
• Fuse base protection
• Casing: Casting (PDC)

• Enhanced Durability
• High Efficiency
• Safe for use
• Compact & Lightweight
• Wide Input Voltage Range
• Efficient Heat Management with Aluminum housing
• Waterproof Design: IP67
