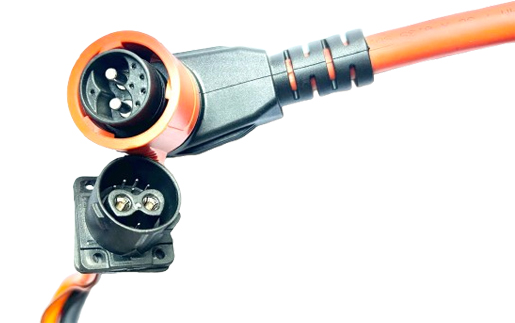

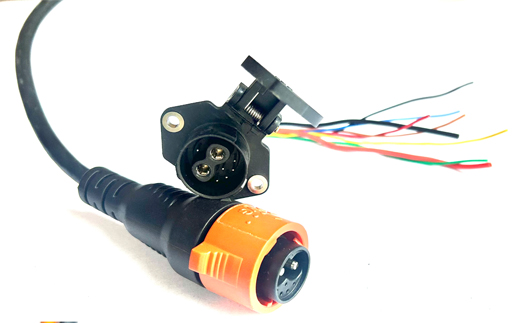

50 Amp Charging Discharging Connectors

Use - Two Wheeler, Three Wheeler, Bicycle, Bike, Electric Vehicle, and PDU

• Models: Connector (2+1+5), (2+1), (2+2), (2+3), (2+4), (2+5), (2+6), (2+7), (2+8) Positions

Mechanical:

• Pull-out Force: <100N
• Mating Cycle: 3,200 cycles

Electrical:

• Rating Voltage: Max 120 VDC
• Operating Voltage: Max 120 VDC
• Rating Current: Power - 50A, Signal - 5A
• Peak Current: 60A for 30 seconds
• Insulation Resistance: >1GΩ at DC 500V

Environmental:

• Operating Temperature: -40^oC to 105^oC
• IP Rating: IP67 (mated without cap)
• Flammability Rating: UL94-V0

• Terminal holding and engagement technology
• High conductivity
• Audible click when lock engaged
• Locking thrust technology
• 3 dots design lock
• Unlocking lever
• Improved ergonomics technology
• Male and female terminal back cap
• Improved mating and un-mating life cycle
• Wire length customized
