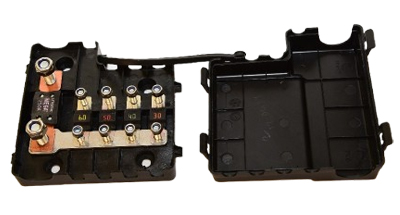

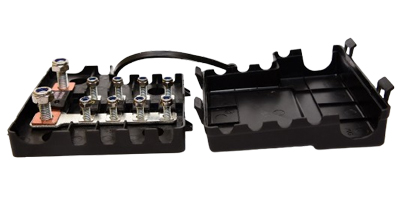

One Mega 4 midi Fuse Boxeses

Four Wheeler vehicle

• V MAX - 72 VDC
• Working Temperature ) : -10^oC To 80^oC
• Current Max (Continuous) : 170 A
• IP (With cover) : 22
• Flammability : UL 94 HB
• Tightening torque - M8 Nm 11 ± 20%
• Tightening Torque - M5 Nm 4.5 20%
• Overall Dimension – 125 X 120 X 45 mm

• Vibration resistance
• Corrosion Resistance
• Easily serviceable
• High temp resistance material used
• Poke -yoke mounting pattern
• Sealed enclosed protect for fuses
