Use:
Two - Wheelers, Three-wheelers, Bike two wheeler Electric vehicle
Specification
- Rotation Angle (Degree) : 0-67o
- Supply Voltage Range : 4.5V to 6V DC
- Current Max : 10mA
- Sensor Output @ 5V I/P : 0.8V DC to 4.2V DC ( Can be Customized)
- Spring Operating Force : 25N
- IP Rating (Without Electronics parts) : IP65
- Max. Temp :80oC
- Min. Temp ; -20oC
- EMI/EMC compliance (AIS 004) - AIS-004 (Part 3)
- Overall dimensions- 180X80X95 mm.
Advantage

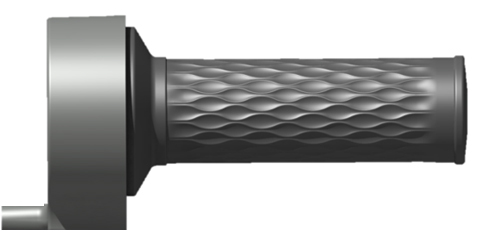

- Throttle position sensing is based on the inductive principle of electromagnetic induction to measure objects.
- Cost-effective; no magnet required.
- Immune to magnetic stray fields; no shielding required.
- Suitable for harsh environments and extreme temperatures.
- High resolution, even for small angle ranges.
- High accuracy: ≤ 0.2% full scale
- Vibration-Resistant Design
- Environmental Protection
- Long Operational Life
- Enhanced Reliability
- Overvoltage Protection Available
- Short Circuit Protection Available
- Reverse Polarity Protection Available
- Customized input voltage and customized output voltage
- Customization – Pigtail length and connector / Switches
