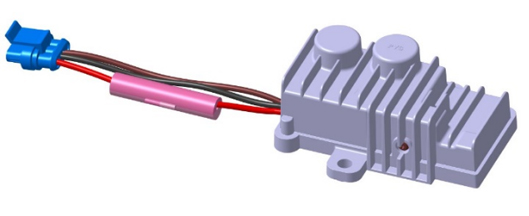

DC-DC Converter 48V/72V to 12V-15A

Two-Wheelers, Three-Wheelers, Electric Vehicles

• Input Voltage Range: 30–85 VDC
• Nominal Voltage: 60/72 VDC
• Output Voltage: 12.8VDC ±0.5VDC
• Output Current: 15A constant, 17A peak
• Line & Load Regulation: ±2%
• Operating Temperature Range: 0^oC to +75^oC
• Enclosure: Aluminum, IP67 waterproof
• Dimensions: 110mm x 90mm x 45mm
• Mounting: Flange M6 Screw and Nut Bolt
• Fuse base protection
• Casing: Casting (PDC)

• Enhanced Durability
• High Efficiency
• Safe for use
• Compact & Lightweight
• Wide Input Voltage Range
• High Current Capacity
• Efficient Heat Management with Aluminum housing
• Waterproof Design: IP67
